The GX series offers a variety of fibers for diverse applications, covering a wavelength range from 190nm to 2500nm. This includes UV-resistant quartz fibers, UV quartz fibers, and visible glass fibers. We can design, customize, and produce non-standard fiber products and probes tailored to meet specific customer requirements.

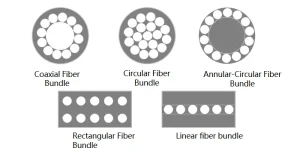

Fiber Bundle Types
HOW CAN WE HELP YOU
+44 7496521078
sale@rudeeroptics.com
| Spectral Range: |
| Visible glass fiber: 380-800nm Ultraviolet quartz light: 200-1100nm Near-infrared quartz fiber: 360-2500nm UV-resistant quartz fiber: 190-1100nm |
| Numerical Aperture： |
| 0.12、0.22、0.37 |
| Protective Jumper:： |
| PVC, Stainless Steel, Composite,customizable |
| Fiber Structure: |
| Single-Core Fiber, Y-Shaped Fiber, Bifurcated Fiber, Z-Shaped Fiber、customizable |
| Fiber Connectors： |
| SMA905, FC, TA (Φ6.35mm Stainless Steel), TB (Φ10.0mm Stainless Steel),、customizable |
| Core Diameter: |
| 50、100、200、300、400、600、1000（Available core diameters may vary slightly depending on the fiber type, customizable)） |
